VSS Vario Soft Bar

Extremely secure and comfortable

The VSS Patrix has smooth, parallel sides on the attachment section and the remaining bar has a 2 degree taper which simplifies the fitting of an overcasting onto the implant bar frame. The bar pattern can be reduced along the base as well as the mesial and distal areas to fit the required space. The VSS has three levels of retention: green (light), yellow (medium), and red (high); however the retentiveness can be customized on a per patient basis by simply polishing the implant bar frame until a comfortable grip is achieved.

Technical Information Tips and Techniques

VSS CASE PICTURES

VSS METAL HOUSINGS INSTRUCTIONS

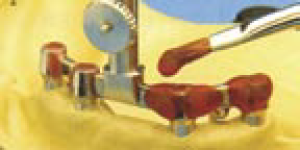

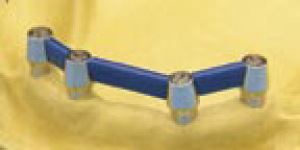

The bar should be fitted between the implant abutments with a paralleling mandrel. The bar is made of rigid acrylic which can be trimmed easily and quickly.

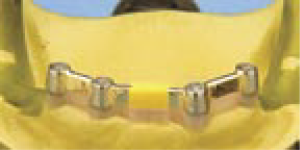

After casting and trimming, the bar is secured on the abutments with the paralleling mandrel. They should be soldered together to create a stress free unit.

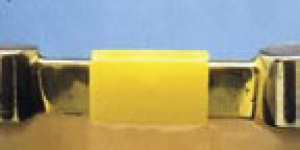

Duplicating is carried out with the yellow matrix for the VSP-FS and with the Duplicating Jig for the VSP-GS. This provide the optimum conditions for changing the dgree of friction later.

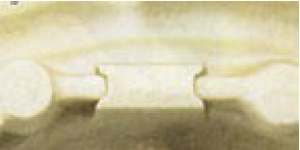

The restoration is blocked out and duplicated using standard methods. No spacer wax should be applied around the matrix.

The matrix is also duplicated and acts as a spacer for the matrix housing in the chrome cobalt framework.

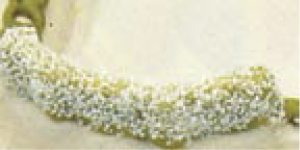

The bar and the matrix are simply coated with wax. The remaining sections of the patterns are waxed up as required.

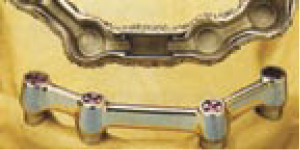

Before inserting the matrix into its housing in the chrome cobalt frame work, check the housing for bubbles and high spots.

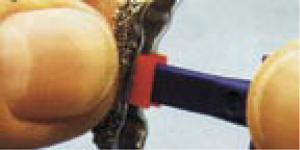

The matrix with the desired degree of friction is selected and pressed in using the insertion tool.

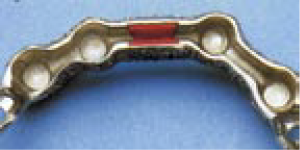

The underside of the finished restoration with parallel bar and red matrix. The friction can be increased or decreased as required by replacing the matrix.

Home
Bredent
Bredent Attachments
VSS Vario Soft Bar

VSS Vario Soft Bar

Sort By Set Descending Direction

View as Grid List

7 Items

Show

per page

Add to Wish List Add to Compare

Rating:
0%

VSS GREEN MATRICES 8 pcs SKU #: 43005270
$67.45 As low as $53.96
Add to Wish List Add to Compare

Rating:
0%

VSS YELLOW MATRICES 8 pcs SKU #: 43005260
$67.45 As low as $53.96
Add to Wish List Add to Compare

Rating:
0%

VSS RED MATRICES 8 pcs SKU #: 43005250
$67.45 As low as $53.96
Add to Wish List Add to Compare

Rating:
0%

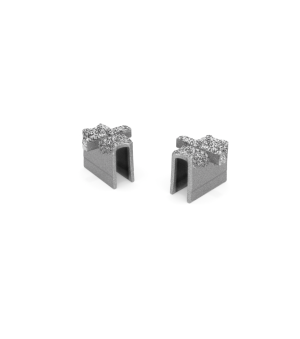

VSS METAL HOUSINGS 2 pcs SKU #: SA5270
$68.00 As low as $54.40
Add to Wish List Add to Compare

Rating:
0%

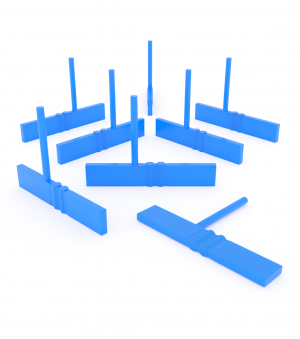

VSS PATRICES 8 pcs SKU #: 43005240
$132.05 As low as $105.64
Add to Wish List Add to Compare

Rating:
0%

VSS INSERTION PIN 2 pcs SKU #: 43007363
$25.70 As low as $20.56
Add to Wish List Add to Compare

Rating:
0%

VSS ASSORTMENT 9 pcs SKU #: 43005230
$88.90 As low as $71.12

Sort By Set Descending Direction

View as Grid List

7 Items

Show

per page

Filter

Shopping Options

Attachment Kind

Matrices 3 items
Patrices 2 items
Housing 1 item
Kits 1 item

Attachment Type

VSS 7 items

RETENTION LEVEL

4 LBS 1 item
6 LBS 1 item
8 LBS 1 item

Select Pieces

2 Pieces 2 items
8 Pieces 4 items
