Success with RevoCone
The prefabricated and custom-fit cone for each implant system enables straightforward, digital production and offers patients a high level of comfort thanks to a removable bridge design. The system offers you the following advantages:
- Telescopic restorations offer the best conditions for care and recall. The snap effect provides optimal feedback for the final fit of the restoration.
- Guided surgery inaccuracies caused by the drilling protocol are compensated for the special cone design.
- A high static value is given with vertical and horizontal force. The force peaks are offset by the flexibility of the plastic.
- RevoCone supports the preservation of abutment teeth with a strategic increase in the number of abutments by improving statics and reducing incorrect loading.
Technical Information

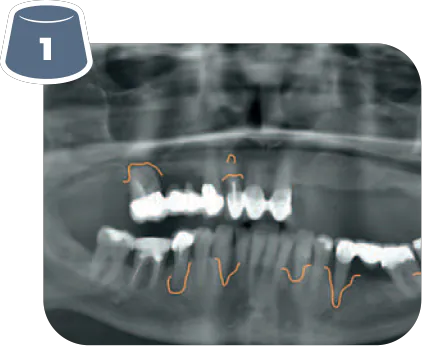

Overview image is recorded for diagnostic purposes.

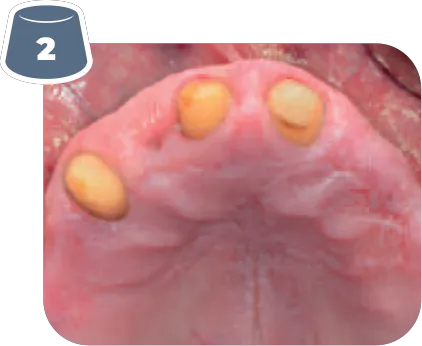

Three teeth are worth preserving and pre-prepared for conical crowns.

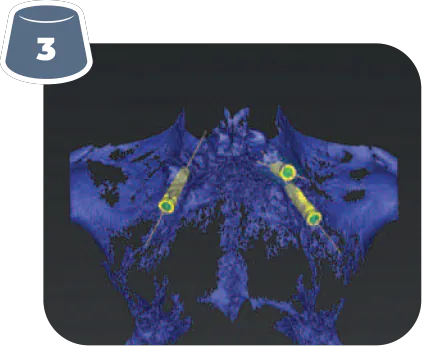

The DTV is used to determin the implant positions.

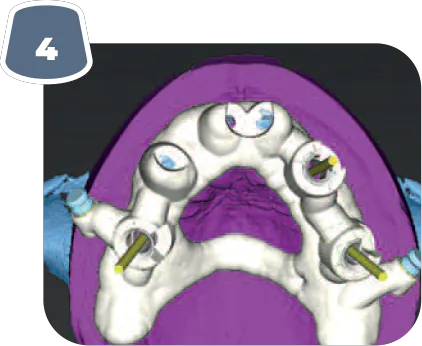

The drilling template for guided implantation is designed in CAD.

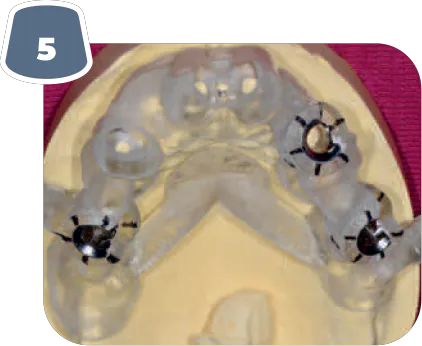

The drilling template is produced quickly and cost-effectively using the printing process.

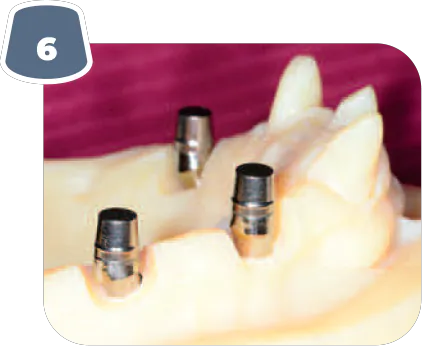

The correct implant positions are set using the RevoCone base for the producing temporary restoration.

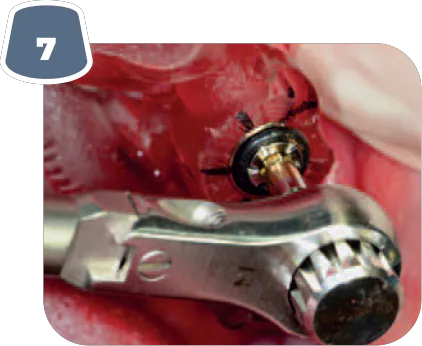

The implants are placed using the drilling template according to the protocol.

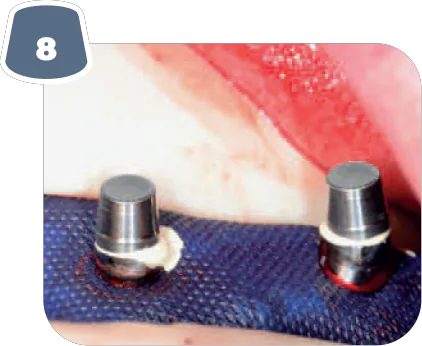

The RevoCone cones are attached with DTK Adhesive

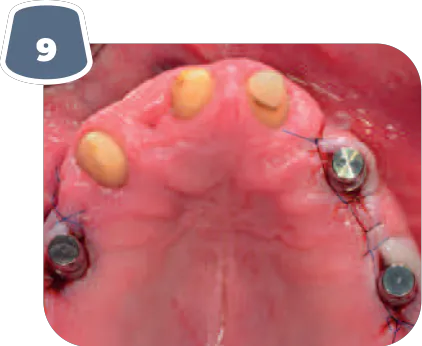

Once the suture is closed, the RevoCone housings are attached with the white RevoCone caps.
The digital impression is used to produce the provisional inlay.

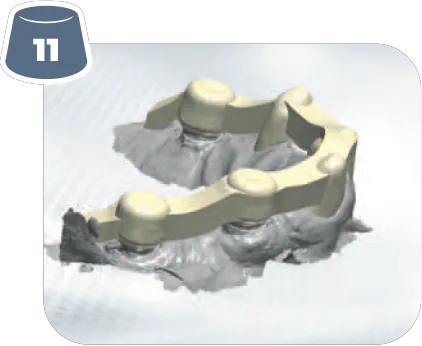

The digitally planned framework is made from BioHPP.
The provisional inlay is supplied with the yellow RevoCone caps with 8 N for secure fixation.

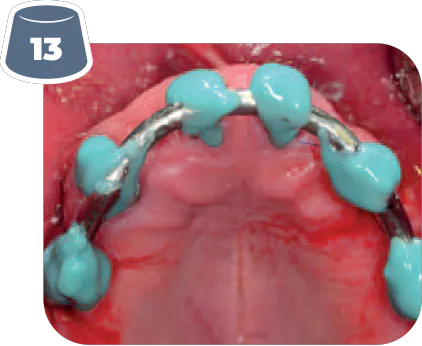

The primary crowns are fixed with the RevoCone housing for the impression.

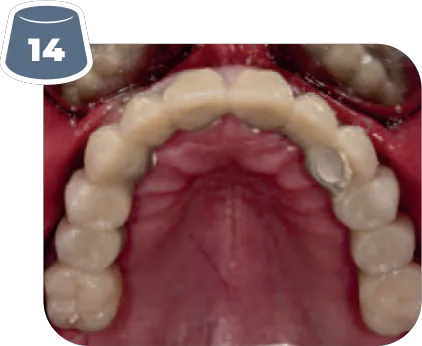

The provisional inlay is temporarily glued to the stumps until the implants heal.

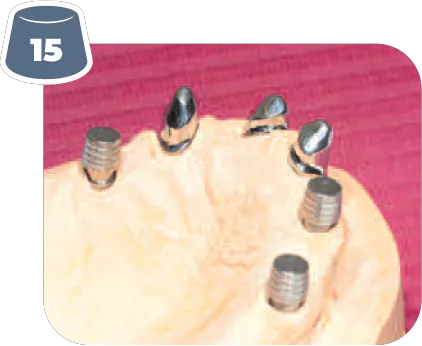

Meanwhile, the primary crowns are made.
After the healing phase, primary crowns and RevoCone housings are blocked for the impression.

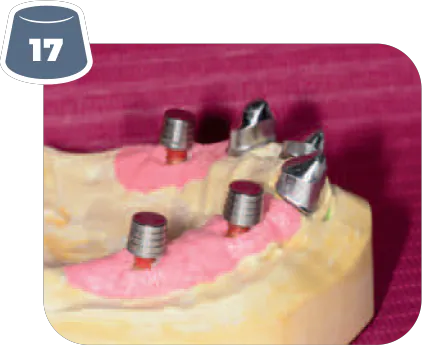

The soft gingival mask facilitates the completion of the prosthesis.

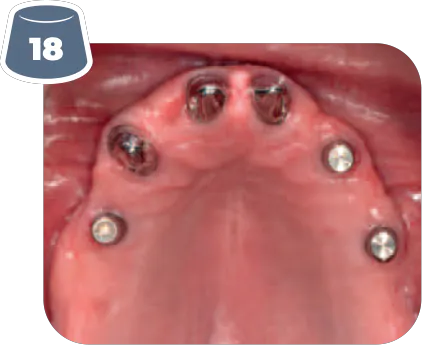

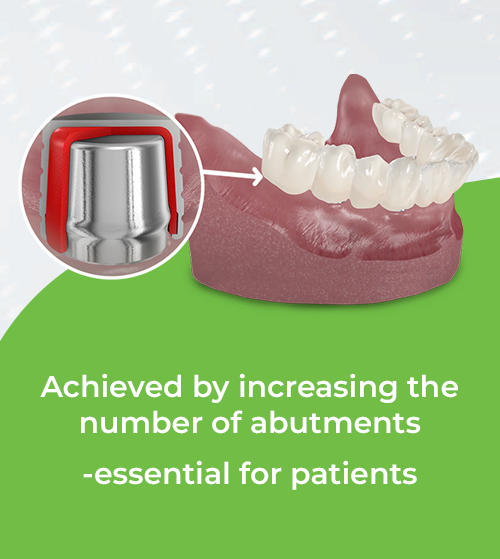

Increasing the number of abutments with statically optimal support forms the basis for the removable prosthesis.

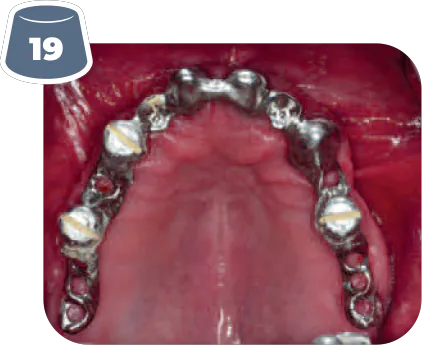

The framework is glued to the RevoCone housing stress-free. Excess adhesive can be easily removed occlusally.

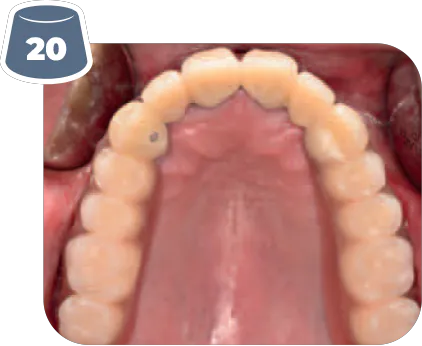

The prosthesis can be exchanged with different frictions of the RevoCone caps as required.
RevoCone - The removable bridge
The low number of RevoCone components makes the system easy to use!
Stock-keeping is reduced and the production of custom-fit, digitally produced dentures is simplified.
