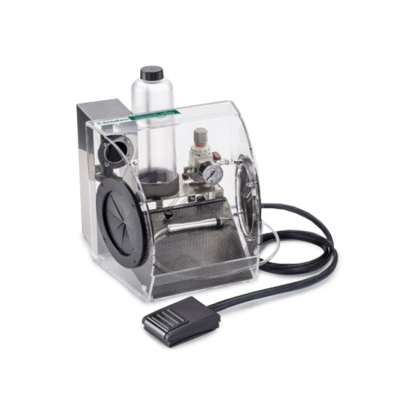

IDEASTUDIO

ALL-IN-ONE FINISHING UNIT FOR THE DENTAL CLINIC

BOX in methacrylate fitted with easy-to-replace transparent protection screen, grid on the bottom allowing to separate grinding debris plus a micro blasting TANK assembled on stainless steel support, instant stop thanks to the EASY module; filter, pressure reducer and pressure gauge, pneumatic foot-control + a constant pneumatic SUCTION system to eliminate the fine dust produced by aluminum oxide.

Applications

 – ideally suited for the preparation of the retention wall for fixed prosthesis, before cementation

– finishing for CAD-CAM milled elements.

Installation

Ideastudio DOES NOT need any electric connection, only a pneumatic connection.

It has been noticed in this period (Covid-19) where extensive use of alcohol-based products is used to disinfect surfaces that these substances, when they come into contact with plexiglass (polymethylmethacrylate) create irreversible cracks. Please be careful to avoid damaging the product.

TECHNICAL FEATURES

Nozzle:  1 per Ø 0,8 mm (Ø 1,2 upon request)

Abrasive media: AL2O3150 (95μ) – AL2O3180 (85μ) – Micro blast 90μ upon request, with Ø 1,2 nozzle: AL2O3120 (105μ)

Suction System: pneumatic (Venturi)

Filtration: Dry System (with cloth bag)

Working Pressure: 2,0-4,0 BAR

Dimensions: mm 280x320x300h

Net Weight: 5,0 Kg
